Fit-One PFA Male Connector Through Fittings

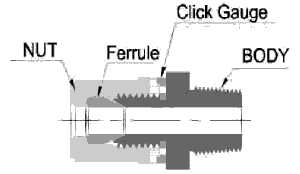

Fit-One PFA Male Connector Through Fittings Parts
Fit-One PFA Male Connector Through Fittings Diagram

Inch NPT

Model
T
NPT
HEX1
HEX2
A
B
C
MCT-H1-N1
3.18x2.18
1/8
11
13
33.8
18.8
9
MCT-H2-N1
6.35x3.95
1/8
15
20
38.5
23.5
9
MCT-H2-N2
6.35x3.95
1/4
15
20
42.5
23.5
13
MCT-H2-N3
6.35x3.95
3/8
15
20
42.5
23.5
13
MCT-H3-N3
9.53x6.35
3/8
19
23
46.7
27.7
13
MCT-H3-N4
9.53x6.35
1/2
19
23
50.5
27.7
16.8
MCT-H4-N4
12.7x9.53
1/2
24
29
57.1
33
16.8
MCT-H4-N6
12.7x9.53
3/4
24
29
57.4
33
17.1
MCT-H6-N6
19.05x15.8
3/4
32
38
65.4
41
17.1
MCT-H6-N8
19.05x15.8
1
32
38
69.7
41
21.4
MCT-H8-N8
25.4x22.2
1
41
49
76.7
48
21.4

mm PT

Model
T
PT
HEX1
HEX2
A
B
C
MCT-M3-R1
3x2
1/8
11
13
33.8
18.8
9
MCT-M4-R1
4x3
1/8
11
13
33.8
18.8
9
MCT-M4-R2
4x3
1/4
11
13
37.8
18.8
13
MCT-M6-R1
6x4
1/4
16
20
38.5
23.5
9
MCT-M6-R2
6x4
1/4
16
20
42.5
23.5
13
MCT-M6-R3
6x4
3/8
16
20
42.5
23.5
13
MCT-M8-R2
8x6
1/2
19
23
46.7
27.7
13
MCT-M8-R3
8x6
3/8
19
23
46.7
27.7
13
MCT-M8-R4
8x6
1/2
19
23
50.5
27.7
16.8
MCT-M10-R3
10x8
3/8
19
23
46.7
27.7
13
MCT-M10-R4
10x8
1/2
19
23
50.5
27.7
16.8
MCT-M12-R4
12x10
1/2
24
29
57.1
33
16.8
MCT-M12-R6
12x10
3/4
24
29
57.4
33
17.1
MCT-M19-R6
19x15.8
3/4
32
38
65.4
41
17.1
MCT-M19-R8
19x15.8
1
32
38
69.7
41
21.4
MCT-M25-R8
25x22
1
41
49
76.7
48
21.4

Inch PT

Model
T
PT
HEX1
HEX2
A
B
C
MCT-H1-R1
3.18x2.18
1/8
11
13
33.8
18.8
9
MCT-H2-R1
6.35x3.95
1/8
15
20
38.5
23.5
9
MCT-H2-R2
6.35x3.95
1/4
15
20
42.5
23.5
13
MCT-H2-R3
6.35x3.95
3/8
15
20
42.5
23.5
13
MCT-H3-R3
9.53x6.35
3/8
19
23
46.7
27.7
13
MCT-H3-R4
9.53x6.35
1/2
19
23
50.5
27.7
16.8
MCT-H4-R4
12.7x9.53
1/2
24
29
57.1
33
16.8
MCT-H4-R6
12.7x9.53
3/4
24
29
57.4
33
17.1
MCT-H6-R6
19.05x15.8
3/4
32
38
65.4
41
17.1
MCT-H6-R8
19.05x15.8
1
32
38
69.7
41
21.4
MCT-H8-R8
25.4x22.2
1
41
49
76.7
48
21.4

Listed sizes are for reference only.
“T” indicates OD and ID of tube.
