T-Type Reducing Union Tee Adaptors

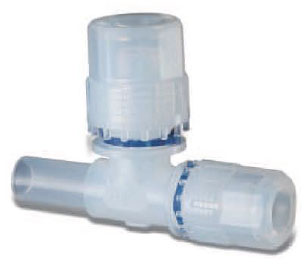

Fit-One PFA Fitting Reducing Union Tee Adapter T Type

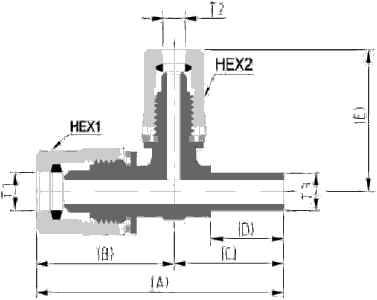

Fit-One PFA Fitting Reducing Union Tee Adapter T Type Diagram

Inch

Model
T1
T2
T3
HEX1
HEX2
A
B
C
D
E
RUTA-H3-H4-TH4
9.53x6.35
12.7x9.53
12.7x9.53
19
24
81.2
42.7
38.5
25
48.5
RUTA-H3-H2-TH3
9.53x6.35
6.35x3.95
9.53x6.35
19
16
72.2
40.2
32
21
36

mm

Model
T1
T2
T3
HEX1
HEX2
A
B
C
D
E
RUTA-M8-M12-TH4
8x6
12x10
12.7x9.53
19
24
81.2
42.7
38.5
25
48.5
RUTA-M8-M6-TH3
8x6
6x4
9.53x6.35
19
16
72.2
40.2
32
21
36

Listed sizes are for reference only. “T1”, “T2”, and “T3” indicates OD and ID of tube. “W” indicates width of fitting body.

S-Type Reducing Union Tee Adaptors

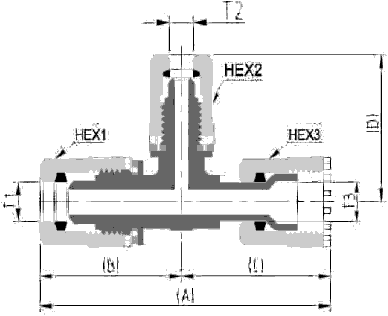

Fit-One PFA Fitting Reducing Union Tee Adapter S Type

Inch

Model
T1
T2
T3
HEX1
HEX2
HEX3
A
B
C
D
RUTA-H3-H4-TH4S
9.53x6.35
12.7x9.53
M12, H4
19
24
24
95.2
42.7
52.5
48.5
RUTA-H3-H2-TH3S
9.53x6.35
6.35x3.95
M8, H3
19
16
19
82.6
40.2
42.4
36

mm

Model
T1
T2
T3
HEX1
HEX2
HEX3
A
B
C
D
RUTA-M8-M12-TH4S
8x6
12x10
M12, H4
19
24
24
95.2
42.7
52.5
48.5
RUTA-M8-M6-TH3S
8x6
6x4
M8, H3
19
16
19
82.6
40.2
42.4
36

Listed sizes are for reference only. “T1”, “T2”, and “T3” indicates OD and ID of tube. “W” indicates width of fitting body.
