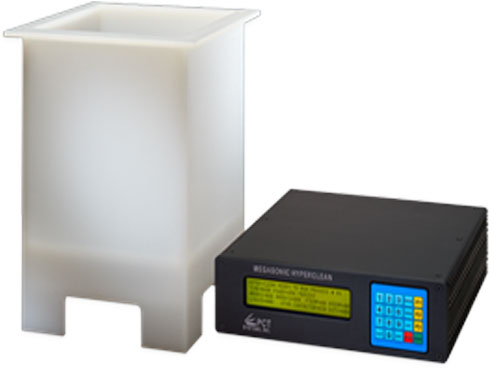

The New Mini-Meg 150 is a full production megasonic system for cleaning, process enhancement, stripping or plating that can accommodate a fully loaded common 6” (150mm) 25 wafer carrier. Whether for production or advanced research and process development , the larger capacity Mini Meg 150 has an attractive base price thousands less than competing systems.
GENERATOR
PROCESS TANK
TRANSDUCER
Model 6000 Mini-Meg Generator Mechanical Specifications
| Size | Width 14.0”, Length 14.0”, Height 5.0” |
| Material of Construction | Anodized Aluminum |
| Mounting | Horizontal or Vertical |
Electrical Specifications
| Voltage Rating | 208-240 VAC, 50/60 Hz |
| Current Rating | Max 10 amps |
| Environmental Operating Range | 0° to 27°C |
| Storage Temperature Range | -25° to 50°C |
Megasonic Amplifier Operation Specifications
| Independent Power & Frequency Control for each RF Output | |
| Number of Channels | 2 |
| Number of Outputs per Channel | 2 |
| Maximum RF Output per Channel | 350 watts |
| Programmable RF Output Range | 0 to 500 watts per Channe |
| Programmable Recipes / Channel | 7 |
| Frequency Changes / Recipe | 4 |
| RF Output Power Tolerance | +/- 10% |
| Output Designations | Array 1, Array 2 |
| Frequency Bands (Choice of 1) | 700kHz, 950kHz |
| Frequency Resolution | 100 Hz |
| Frequency Accuracy | +/- 100 Hz |
| Programmable Sweep Functionality | 1-10 KHz |
| RF Output Connectors | DB15F |
External Interface
| External Interlock | DB15 Male Connector, +5v Loopback – Liquid Level |
| Communication Ports | SECS II: RS232: DB15 Male connector |
| Transducer Connections | 4 each DB15 Female connectors |
| Power Plug | 3 – prong IEC Appliance Connector |
Displays/User Interface
| Power On/Off Switch |
| 4 Line 40 Character LCD with keypad or PDA/LCD Touch Screen Monitoring for Frequency vs. Time, Power vs. Time, and more |
Facilities Requirements
| N2 or CDA supply | 1-2 psi @ 1/4 scfm |

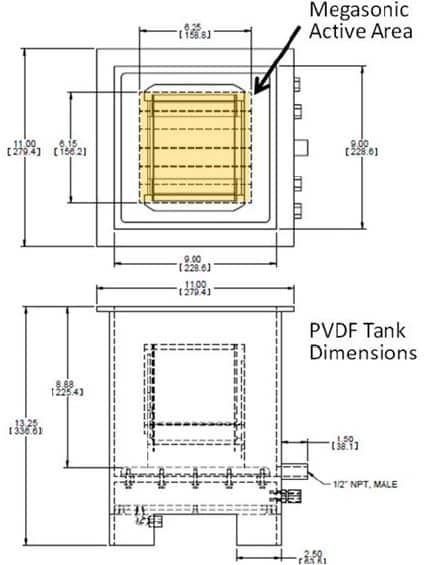

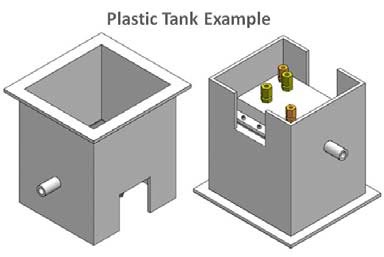

Mini‐Meg 150 Tank PVDF Tank Mechanical Specifications
| Size: Outside Dimensions Inside Dimensions |
Width Length Height 11.00” x 12.50” x 13.25” 9.00” x 9.00” x 8.88” |
| Material of Construction | PVDF Plastic |
| Drain Port | PVDF Drain 1/2″ NPT |
Stainless Steel Tank Mechanical Specifications
| Size: Outside Dimensions Inside Dimensions |
Width Length Height 12.50” 12.50” 10.50” 9.50” 9.50” 8.88” |
| Material of Construction | Electro Polished Stainless Steel PFA Coated Stainless (+$1,000) |
| Drain Port | SS drain with 1/2” ball valve |
