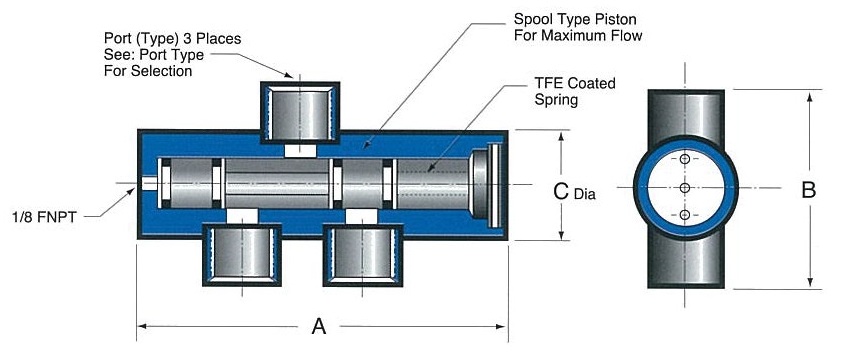

iPolymer Diverter Valve (DVTR) is designed to pneumatically actuate and divert fluid flow from one flow path to a second. Our DVTR Valve functions as a shuttle valve to divert DI Water or Hazardous Chemicals to a separate drain or reclaim flow path. The large orifice flow path of the DVTR Valve allows for rapid dumping of reservoirs and tanks. The PTFE Coated Spring is isolated from the fluid media. Features Include: Corrosion Resistant, Maximum Flow, Minimum Restriction.
Filter by:
| Item # | Material | Port/Orifice Size | Port Type | O-Ring Type |
|---|---|---|---|---|
| DVTR-PVC-8P-EP | PVC | 1/2 in | FNPT | EPDM |
| DVTR-PVC-8P-VT | PVC | 1/2 in | FNPT | Viton |
| DVTR-PVC-8P-KA | PVC | 1/2 in | FNPT | Kalrez |
| DVTR-PVC-8W-EP | PVC | 1/2 in | Weld Socket | EPDM |
| DVTR-PVC-8W-VT | PVC | 1/2 in | Weld Socket | Viton |
| DVTR-PVC-8W-KA | PVC | 1/2 in | Weld Socket | Kalrez |
| DVTR-PVC-12P-EP | PVC | 3/4 in | FNPT | EPDM |
| DVTR-PVC-12P-VT | PVC | 3/4 in | FNPT | Viton |
| DVTR-PVC-12P-KA | PVC | 3/4 in | FNPT | Kalrez |
| DVTR-PVC-12W-EP | PVC | 3/4 in | Weld Socket | EPDM |
| DVTR-PVC-12W-VT | PVC | 3/4 in | Weld Socket | Viton |
| DVTR-PVC-12W-KA | PVC | 3/4 in | Weld Socket | Kalrez |
| DVTR-PVC-16P-EP | PVC | 1 in | FNPT | EPDM |
| DVTR-PVC-16P-VT | PVC | 1 in | FNPT | Viton |
| DVTR-PVC-16P-KA | PVC | 1 in | FNPT | Kalrez |
| DVTR-PVC-16W-EP | PVC | 1 in | Weld Socket | EPDM |
| DVTR-PVC-16W-VT | PVC | 1 in | Weld Socket | Viton |
| DVTR-PVC-16W-KA | PVC | 1 in | Weld Socket | Kalrez |
| DVTR-POL-8P-EP | Polypro | 1/2 in | FNPT | EPDM |
| DVTR-POL-8P-VT | Polypro | 1/2 in | FNPT | Viton |
| DVTR-POL-8P-KA | Polypro | 1/2 in | FNPT | Kalrez |
| DVTR-POL-8W-EP | Polypro | 1/2 in | Weld Socket | EPDM |
| DVTR-POL-8W-VT | Polypro | 1/2 in | Weld Socket | Viton |
| DVTR-POL-8W-KA | Polypro | 1/2 in | Weld Socket | Kalrez |
| DVTR-POL-12P-EP | Polypro | 3/4 in | FNPT | EPDM |
| DVTR-POL-12P-VT | Polypro | 3/4 in | FNPT | Viton |
| DVTR-POL-12P-KA | Polypro | 3/4 in | FNPT | Kalrez |
| DVTR-POL-12W-EP | Polypro | 3/4 in | Weld Socket | EPDM |
| DVTR-POL-12W-VT | Polypro | 3/4 in | Weld Socket | Viton |
| DVTR-POL-12W-KA | Polypro | 3/4 in | Weld Socket | Kalrez |
| DVTR-POL-16P-EP | Polypro | 1 in | FNPT | EPDM |
| DVTR-POL-16P-VT | Polypro | 1 in | FNPT | Viton |
| DVTR-POL-16P-KA | Polypro | 1 in | FNPT | Kalrez |
| DVTR-POL-16W-EP | Polypro | 1 in | Weld Socket | EPDM |
| DVTR-POL-16W-VT | Polypro | 1 in | Weld Socket | Viton |
| DVTR-POL-16W-KA | Polypro | 1 in | Weld Socket | Kalrez |
| DVTR-PVDF-8P-EP | PVDF | 1/2 in | FNPT | EPDM |
| DVTR-PVDF-8P-VT | PVDF | 1/2 in | FNPT | Viton |
| DVTR-PVDF-8P-KA | PVDF | 1/2 in | FNPT | Kalrez |
| DVTR-PVDF-8W-EP | PVDF | 1/2 in | Weld Socket | EPDM |
| DVTR-PVDF-8W-VT | PVDF | 1/2 in | Weld Socket | Viton |
| DVTR-PVDF-8W-KA | PVDF | 1/2 in | Weld Socket | Kalrez |
| DVTR-PVDF-12P-EP | PVDF | 3/4 in | FNPT | EPDM |
| DVTR-PVDF-12P-VT | PVDF | 3/4 in | FNPT | Viton |
| DVTR-PVDF-12P-KA | PVDF | 3/4 in | FNPT | Kalrez |
| DVTR-PVDF-12W-EP | PVDF | 3/4 in | Weld Socket | EPDM |
| DVTR-PVDF-12W-VT | PVDF | 3/4 in | Weld Socket | Viton |
| DVTR-PVDF-12W-KA | PVDF | 3/4 in | Weld Socket | Kalrez |
| DVTR-PVDF-16P-EP | PVDF | 1 in | FNPT | EPDM |
| DVTR-PVDF-16P-VT | PVDF | 1 in | FNPT | Viton |
| DVTR-PVDF-16P-KA | PVDF | 1 in | FNPT | Kalrez |
| DVTR-PVDF-16W-EP | PVDF | 1 in | Weld Socket | EPDM |
| DVTR-PVDF-16W-VT | PVDF | 1 in | Weld Socket | Viton |
| DVTR-PVDF-16W-KA | PVDF | 1 in | Weld Socket | Kalrez |
