Fit-One PFA Fitting Panel Mount Union PMU

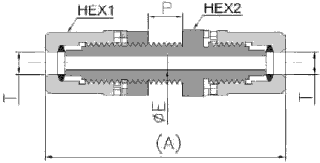

Fit-One PFA Fitting Panel Mount Union Diagram

Inch

Model
T
M
P
HEX1
HEX2
A
E
PMU-H2
6.35x3.95
12.5
10
16
20
69
4
PMU-H3
9.53x6.35
18.5
10
19
23
77.3
6.3
PMU-H4
12.7x9.53
22.5
10
24
29
90.6
10
PMU-H6
19.05x15.8
31
10
32
38
106.6
16
PMU-H6
254x22.2
41
10
41
49
120.6
22

mm

Model
T
M
P
HEX1
HEX2
A
E
PMU-M6
6x4
12.5
10
16
20
69
4
PMU-M8
8x6
18.5
10
19
23
77.3
6.3
PMU-M10
10x8
18.5
10
19
23
77.3
8
PMU-M12
12x10
22.5
10
24
29
90.6
10
PMU-M19
19x15
31
10
32
38
106.6
16
PMU-M25
25x22
41
10
41
49
120.6
22

Listed sizes are for reference only.
“P” indicates maximum panel thickness.
“W” indicates diameter of panel mount hole.
“T” indicates OD and ID of tube.
