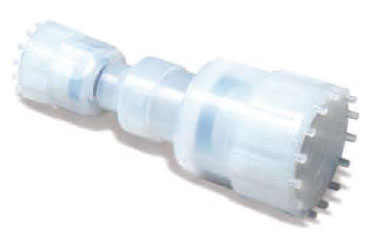

Listed sizes are for reference only.
“T1” and “T2” indicates OD and ID of tube.
| Model | T1 | T2 | A | B | C |
|---|---|---|---|---|---|
| RA-TH10-TH6S | H10 | M19, H6 | 152.5 | 75.4 | 47 |
| RA-TH10-TH8S | H10 | M25, H8 | 164.2 | 75.4 | 58.7 |
| RA-TH12-TH6S | H12 | M19, H6 | 164.2 | 87.4 | 47 |
| RA-TH12-TH8S | H12 | M25, H8 | 176.2 | 87.4 | 58.7 |
| RA-TH12-TH10S | H12 | H10 | 192.9 | 87.4 | 75.4 |
| Model | T1 | T2 | A | B | C |
|---|---|---|---|---|---|
| RA-TH10-TH6 | 31.8X28 | 19.05x15.8 | 111.1 | 50 | 31 |
| RA-TH10-TH8 | 31.8X28 | 25.4x22.2 | 118.1 | 50 | 38 |
| RA-TH12-TH6 | 38.1X33.7 | 19.05x15.8 | 119.1 | 58 | 31 |
| RA-TH12-TH8 | 38.1X33.7 | 25.4x22.2 | 126.1 | 58 | 38 |
| RA-TH12-TH10 | 38.1X33.7 | 31.8X28 | 138.1 | 58 | 50 |
