T-Type Reducing Union Adaptors

Fit-One PFA Fitting Reducing Union Adaptor T Type

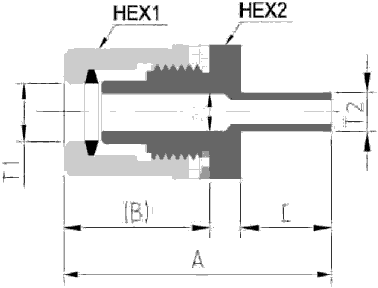

Fit-One PFA Fitting Reducing Union Adaptor T Type Diagram

Inch

Model
T1
T2
HEX1
HEX2
A
B
C
D
RUA-H4-TH3
12.7x9.53
9.53x6.35
24
29
61.3
33
21
10

mm

Model
T1
T2
HEX1
HEX2
A
B
C
D
RUA-M12-TH3
12x10
9.53x6.35
24
29
61.3
33
21
10

Listed sizes are for reference only.
“T1” and “T2” indicates OD and ID of tube.

S-Type Reducing Union Adaptors

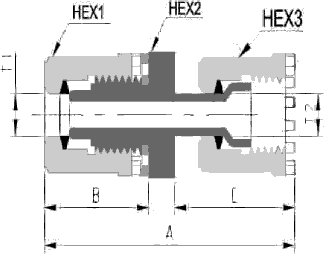

Fit-One PFA Fitting Reducing Union Adaptor S Type

Inch

Model
T1
T2
HEX1
HEX2
HEX3
A
B
C
D
RUA-H4-TH3
12.7x9.53
M8, H3
24
29
19
71.1
33
31.4
10

mm

Model
T1
T2
HEX1
HEX2
HEX3
A
B
C
D
RUA-M12-TH3
12x10
M8, H3
24
29
19
71.1
33
31.4
10

Listed sizes are for reference only.
“T1” and “T2” indicates OD and ID of tube.
