T-Type Union Adapter

Fit-One PFA Fitting Union Adapter T Type

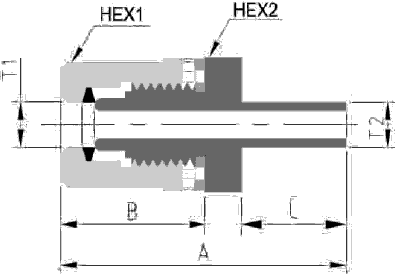

Fit-One PFA Fitting Union Adapter T Type Diagragm

Inch

Model
T1
T2
HEX1
HEX2
A
B
C
UA-H4-TH4
12.7x9.53
12.7x9.53
24
29
65.3
33
25
UA-H6-TH6
19.05x15.8
19.05x15.8
32
38
79.3
41
31
UA-H8-TH8
25.4x22
25.4x22
41
49
93.3
48
38

mm

Model
T1
T2
HEX1
HEX2
A
B
C
UA-M12-TH4
12x10
12.7x9.53
24
29
65.3
33
25
UA-M19-TH6
19x15.8
19.05x15.8
32
38
79.3
41
31
UA-M25-TH8
25x22
25.4x22
41
49
93.3
48
38

Listed sizes are for reference only.
“T1” and “T2” indicates OD and ID of tube.

S-Type Union Adapter

Fit-One PFA Fitting Union Adapter S Type
Fit-One PFA Fitting Union Adapter S Type Diagragm

Inch

Model
T1
T2
HEX1
HEX2
A
B
C
UA-H4-TH4S
12.7x9.53
M12, H4
24
29
79.3
33
39
UA-H6-TH6S
19.05x15.8
M19, H6
32
38
89.3
41
47
UA-H8-TH8S
25.4x22
M25, H8
41
49
114
48
58.7

mm

Model
T1
T2
HEX1
HEX2
A
B
C
UA-M12-TH4
12x10
M12, H4
24
29
79.3
33
39
UA-M19-TH6
19x15.8
M19, H6
32
38
89.3
41
47
UA-M25-TH8
25x22
M25, H8
41
49
114
48
58.7

Listed sizes are for reference only.
“T1” and “T2” indicates OD and ID of tube.
