T-Type Union Elbow Adapter

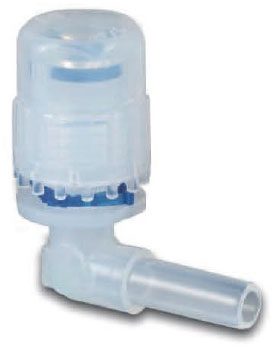

Fit-One PFA Fitting Union Elbow Adapter T Type
Fit-One PFA Fitting Union Elbow Adapter T Type Diagram

Inch

Model
T1
T2
HEX
A
B
c
d
w
UEA-H2-TH2
6.35x3.95
6.35x3.95
16
34
26
17
4
10
UEA-H3-TH3
9.53x6.35
9.53x6.35
19
40.2
32
21
6
14
UEA-H4-TH4
12.7x9.53
12.7x9.53
24
48.5
38.5
25
10
18
UEA-H6-TH6
19.05x15.8
19.05x15.8
32
61.5
49
31
16
27
UEA-H8-TH8
25.4x22.2
25.4x22.2
41
73.5
61
38
22
34

mm

Model
T1
T2
HEX
A
B
c
d
w
UEA-M6-TH2
6x4
6.35x3.95
16
34
26
17
4
10
UEA-M8-TH3
8x6
9.53x6.35
19
40.2
32
21
6
14
UEA-M10-TH3
10x8
9.53x6.35
19
40.2
32
21
6
14
UEA-M12-TH4
12x10
12.7x9.53
24
48.5
38.5
25
10
18
UEA-M19-TH6
19x15.8
19.05x15.8
32
61.5
49
31
16
27
UEA-M25-TH8
25x22
25.4x22.2
41
73.5
61
38
22
34

Listed sizes are for reference only.
“T1” indicates OD and ID of tube.
“T2” indicates size (Code) of fitting body.
“W” indicates width of fitting body.

S-Type Union Elbow Adapter (UEA)

Fit-One PFA Fitting Union Elbow Adapter S Type

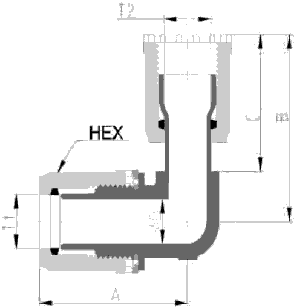

Fit-One PFA Fitting Union Elbow Adapter S Type Diagram

Inch

Model
T1
T2
HEX
A
B
c
d
w
UEA-H2-TH2S
6.35x3.95
M6-H2
16
34
26
17
4
10
UEA-H3-TH3S
9.53x6.35
M8-H3
19
40.2
32
21
6
14
UEA-H4-TH4S
12.7x9.53
M12-H4
24
48.5
38.5
25
10
18
UEA-H6-TH6S
19.05x15.8
M19-H6
32
61.5
49
31
16
27
UEA-H8-TH8S
25.4x22.2
M25-H8
41
73.5
61
38
22
34

mm

Model
T1
T2
HEX
A
B
c
d
w
UEA-M6-TH2S
6x4
M6-H2
16
34
26
17
4
10
UEA-M8-TH3S
8x6
M8-H3
19
40.2
32
21
6
14
UEA-M10-TH3S
10x8
M8-H3
19
40.2
32
21
6
14
UEA-M12-TH4S
12x10
M12-H4
24
48.5
38.5
25
10
18
UEA-M19-TH6S
19x15.8
M19-H6
32
61.5
49
31
16
27
UEA-M25-TH8S
25x22
M25-H8
41
73.5
61
38
22
34

Listed sizes are for reference only.
“T1” indicates OD and ID of tube.
“T2” indicates size (Code) of fitting body.
“W” indicates width of fitting body.
