Fit-One PFA Fitting Union U

Inch

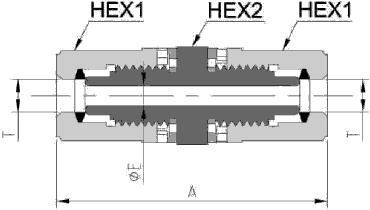

Model
T
HEX1
HEX2
A
E
U-H1
3.18x2.18
11
13
42.6
2
U-H2
6.35x3.95
16
20
53
4
U-H3
9.53x6.35
19
23
61.3
6.3
U-H4
12.7x9.53
24
29
73.3
10
U-H6
19.05x15.8
32
38
89.3
16
U-H8
25.4x22.2
41
49
103.3
22
U-H10
31.8x28
50
60
142.6
28
U-H12
38.1x33.7
60
70
155.2
33.7

mm

Model
T
HEX1
HEX2
A
E
U-M3
3x2
11
13
42.6
2
U-M4
4x3
11
13
42.6
3
U-M6
6x4
16
20
53
4
U-M8
8x6
19
23
61.3
6.3
U-M10
10x8
19
23
61.3
8
U-M12
12x10
24
29
73.3
10
U-M19
19x15.8
32
38
89.3
16
U-M25
25x22
41
49
103.3
22

Listed sizes are for reference only.
“T” indicates OD and ID of tube.
