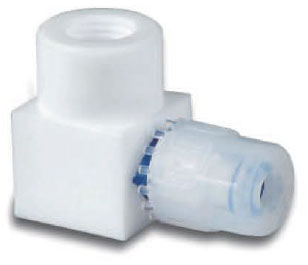

Listed sizes are for reference only.
“T” indicates OD and ID of tube.
“W” indicates width of fitting body.
| Model | T | NPT | HEX | A | B | W |
|---|---|---|---|---|---|---|
| FE-H2-N1 | 6.35x3.95 | 1/8 | 16 | 33.5 | 21 | 20 |
| FE-H2-N2 | 6.35x3.95 | 1/4 | 16 | 35 | 24 | 23 |
| FE-H2-N3 | 6.35x3.95 | 3/8 | 16 | 36.5 | 24.5 | 26 |
| FE-H3-N2 | 9.53x6.35 | 1/4 | 19 | 39.2 | 25.5 | 23 |
| FE-H3-N3 | 9.53x6.35 | 3/8 | 19 | 40.7 | 26 | 26 |
| FE-H3-N4 | 9.53x6.35 | 1/2 | 19 | 43.9 | 30 | 32.5 |
| FE-H4-N2 | 12.7x9.53 | 1/4 | 24 | 47.5 | 28.5 | 29 |
| FE-H4-N3 | 12.7x9.53 | 3/8 | 24 | 47.5 | 29 | 29 |
| FE-H4-N4 | 12.7x9.53 | 1/2 | 24 | 49.3 | 33 | 32.5 |
| FE-H6-N4 | 19.05x15.8 | 1/2 | 32 | 60 | 37.5 | 38 |
| FE-H6-N6 | 19.05x15.8 | 3/4 | 32 | 62 | 38 | 42 |
| FE-H8-N6 | 25.4x222 | 3/4 | 41 | 72.5 | 43.5 | 49 |
| FE-H8-N8 | 25.4x222 | 1 | 41 | 75 | 47.5 | 54 |
| Model | T | NPT | HEX | A | B | W |
| Model | T | PT | HEX | A | B | W |
|---|---|---|---|---|---|---|
| FE-M6-R1 | 6x4 | 1/8 | 16 | 33.5 | 21 | 20 |
| FE-M6-R2 | 6x4 | 1/4 | 16 | 35 | 24 | 23 |
| FE-M6-R3 | 6x4 | 3/8 | 16 | 36.5 | 24.5 | 26 |
| FE-M8-Rl | 8x6 | 1/8 | 19 | 37.7 | 21 | 20 |
| FE-M8-R2 | 8x6 | 1/4 | 19 | 39.2 | 25.5 | 23 |
| FE-M8-R3 | 8x6 | 3/8 | 19 | 40.7 | 26 | 26 |
| FE-M10-R2 | 10x8 | 1/4 | 19 | 39.2 | 25.5 | 23 |
| FE-M10-R3 | 10x8 | 3/8 | 19 | 40.7 | 26 | 26 |
| FE-M10-R4 | 10x8 | 1/2 | 19 | 43.4 | 30 | 32.5 |
| FE-M12-R2 | 12x10 | 1/4 | 24 | 62 | 43 | 29 |
| FE-M12-R3 | 12x10 | 3/8 | 24 | 62 | 43.5 | 29 |
| FE-M12-R4 | 12x10 | 1/2 | 24 | 65.5 | 47.5 | 32.5 |
| FE-M19-R4 | 19x15.8 | 1/2 | 32 | 60 | 37.5 | 38 |
| FE-M19-R6 | 19x15.8 | 3/4 | 32 | 62 | 38 | 42 |
| FE-M25-R6 | 25x22 | 3/4 | 41 | 72.5 | 43.5 | 49 |
| FE-M25-RB | 25x22 | 1 | 41 | 75 | 47.5 | 54 |
| Model | T | PT | HEX | A | B | W |
